Product Overview

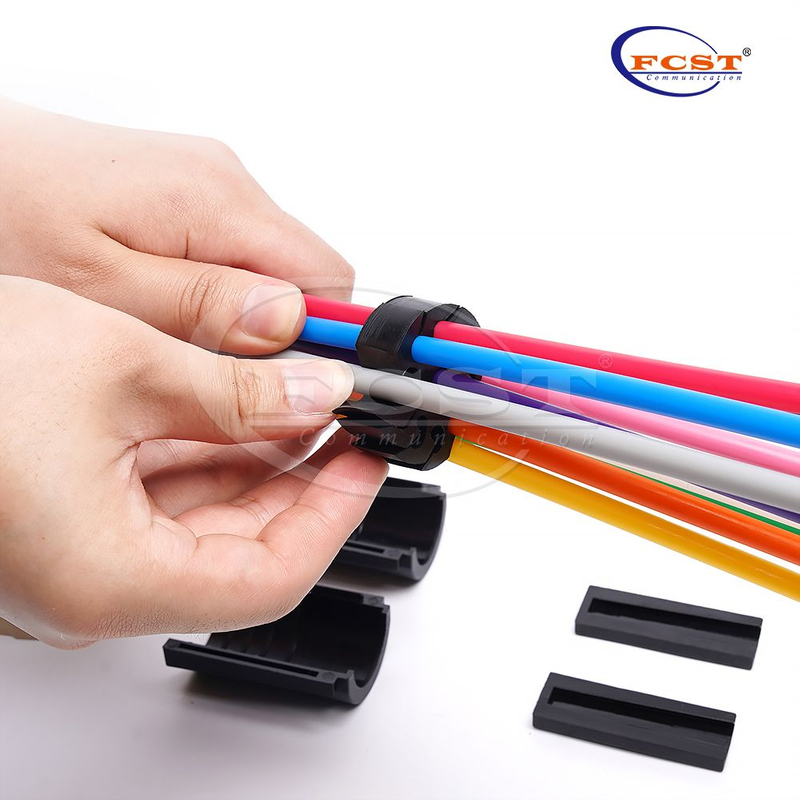

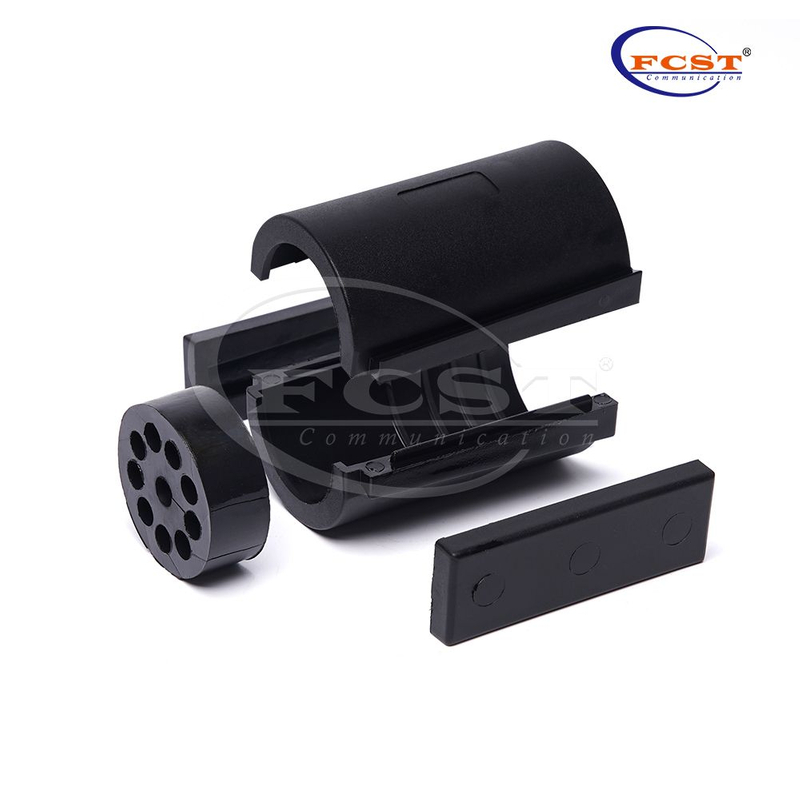

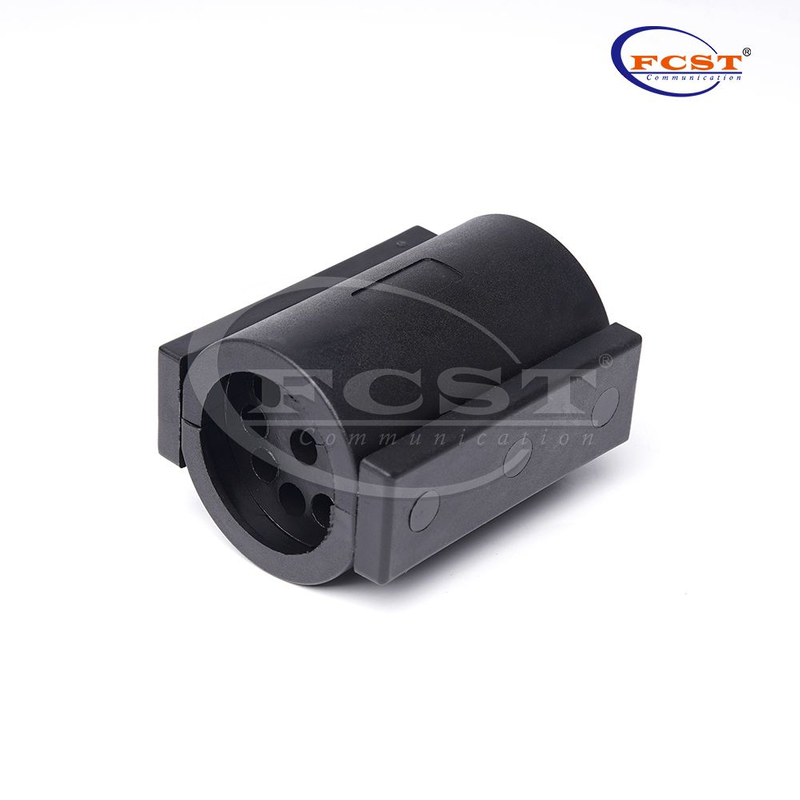

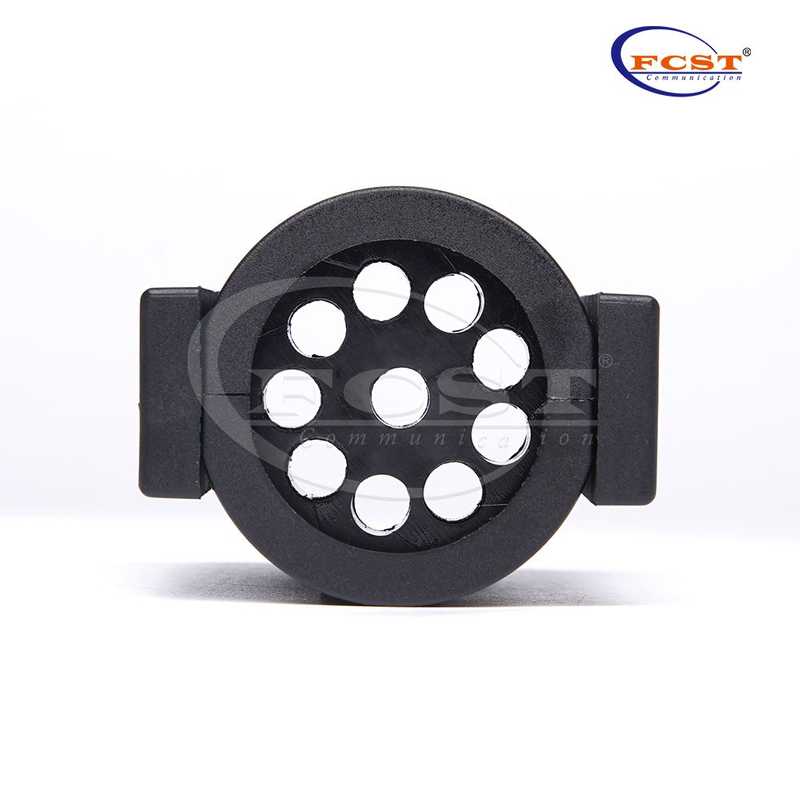

Divisible Duct Sealing-40~63mm(HT) Suitable for Gas and Watertight sealing of 40/50/63mm HDPE ducts, which contain mini/micro ducts and / or (fibre optic) cables. The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards. The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.
Product Advantages
lSlim design.
lEasy installation.
lSuitable for retrofitting.
lGas and watertight ≥ 0,25 bar.
lOther versions available upon request.
Product Specifications
Construction | Description |
Sealing | up to 0.25 bar |
Material | Body:PA Seal:EPDM Closing Key:PA |
Pull-out Force Duct Seal vs Duct | 40mm Microduct Dia.≥ 1000N |
Product Sizes
Ordering Information
Installation Guide
