FCST02222-2
FCST
FCST02222-2
Product Overview

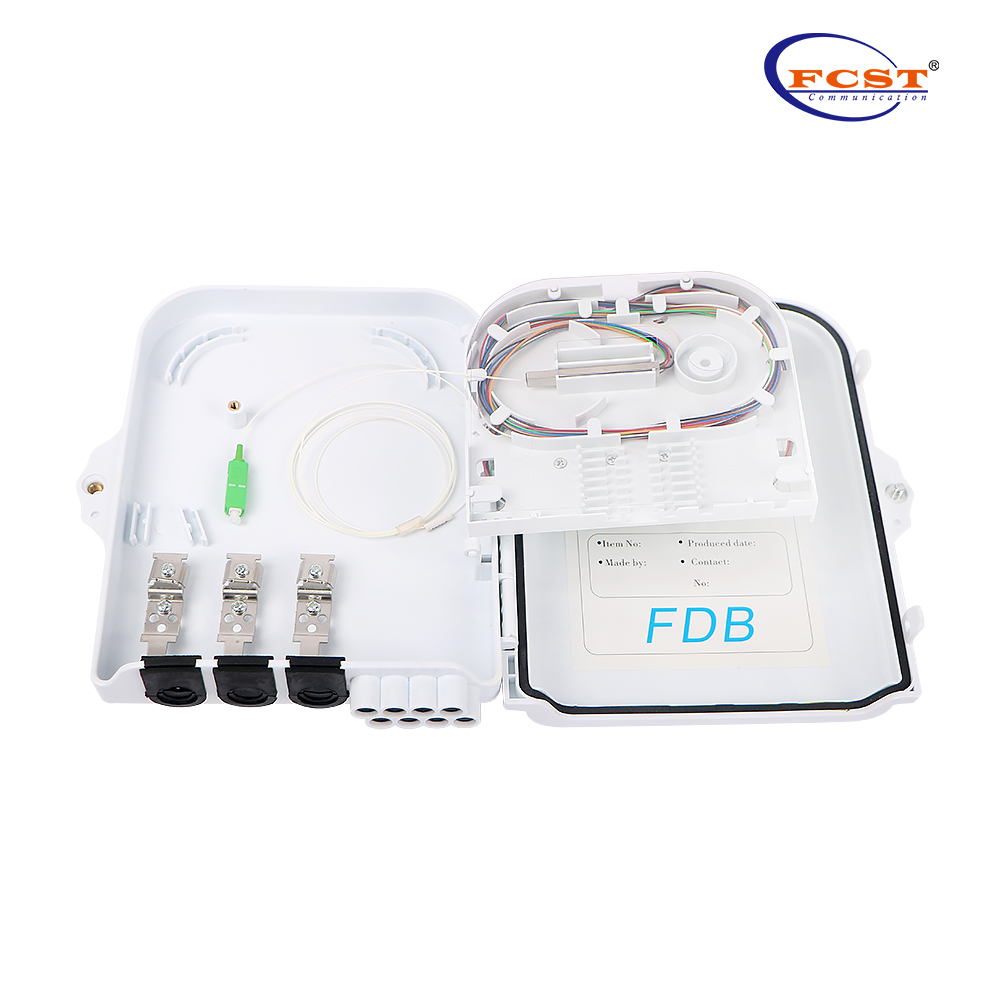

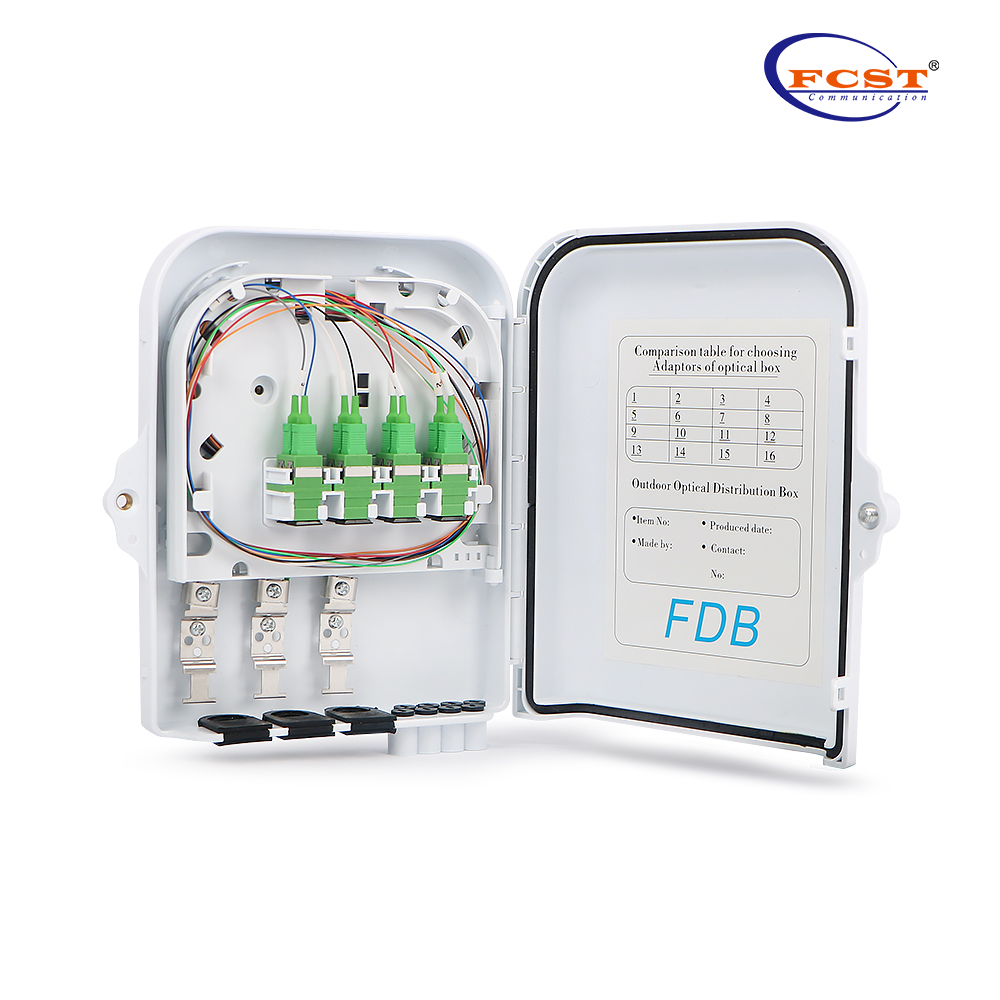

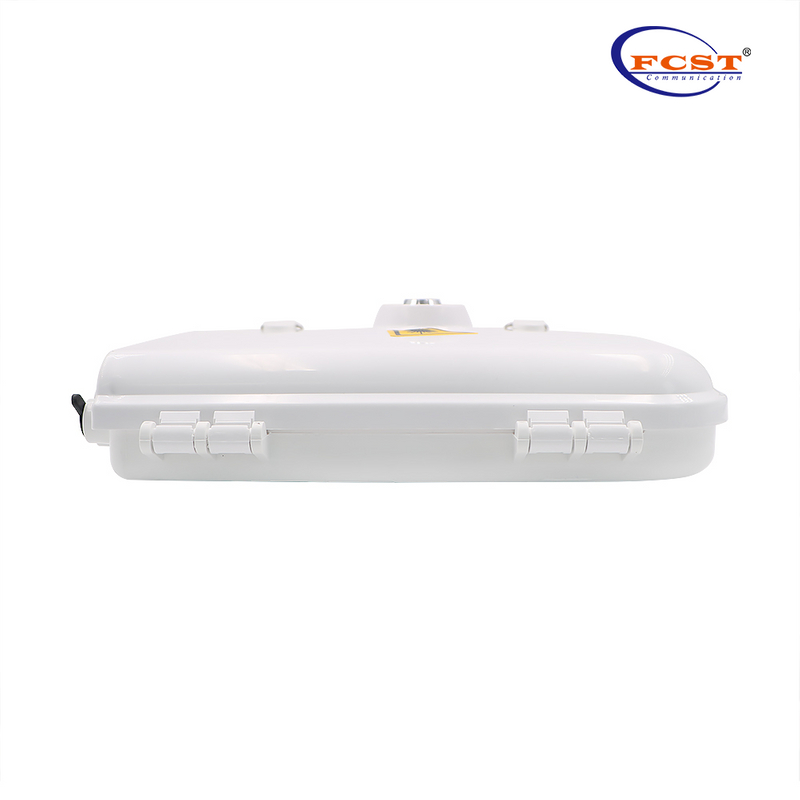

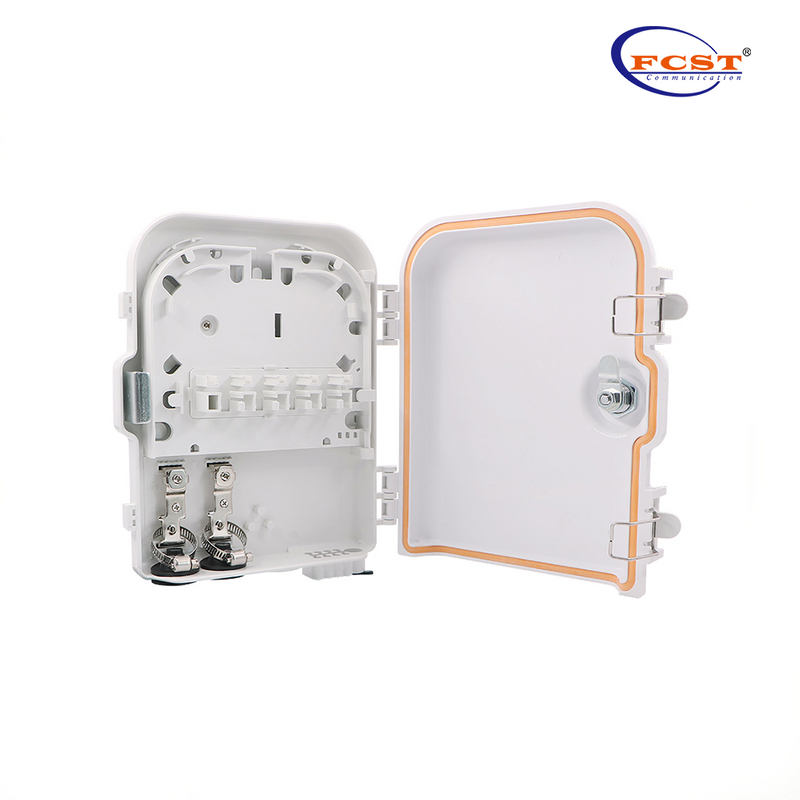

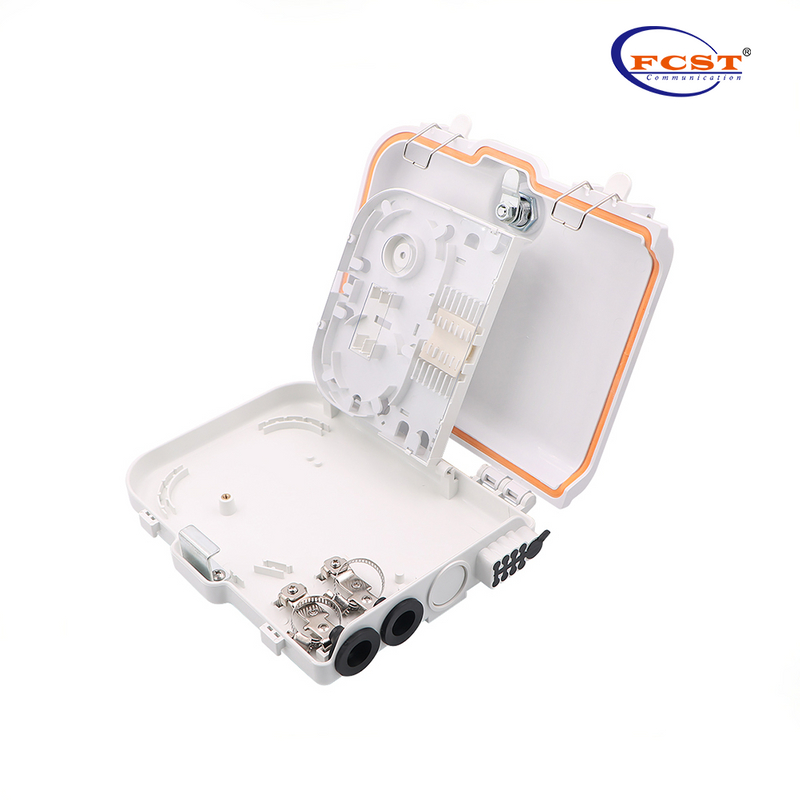

FCST02222-2 Fiber Optic Terminal Box is able to hold up to 8 subscribers. Wall mount ftth box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Product Advantages
l Water-proof design with IP-65 Protection level.
l Integrated with splice cassette and cable management rods.
l Manage fibers in a reasonable fiber radius condition.
l Easy to maintain and extend the capacity.
l Fiber bend radius control more than 40mm.
l Suitable for the fusion splice or mechanical splice.
l 1*8 Splitter can be installed as an option.
l Efficient cable management.

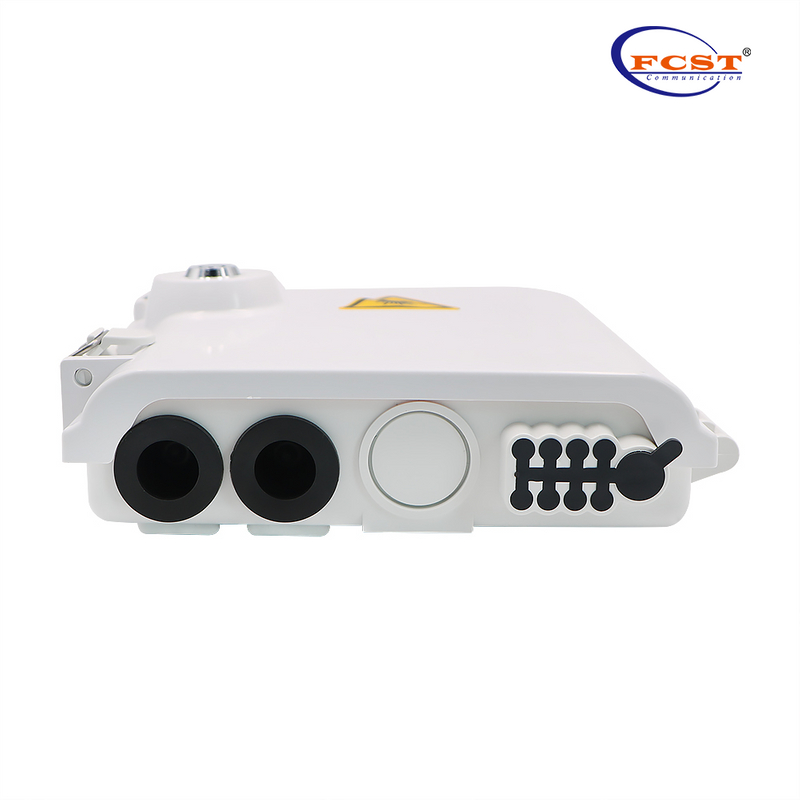

l 8 ports cable entrance for drop cable.
Product Specifications
Construction | Description |
Max. Capacity | 8 |
Material | PC+ABS |
Dimension (mm) | 240*202*71 |
Inlets/Outlets | 3/9 |
Installation | Pole mounting,Pedestal mounting Wall-mounting |
Net Weight(g) | 870 |
Protection Level | IP65 |
Diameter Of Fiber Cable | Φ16mm |
Packing Information
