FCST02240
FCST
FCST02240
Product Overview

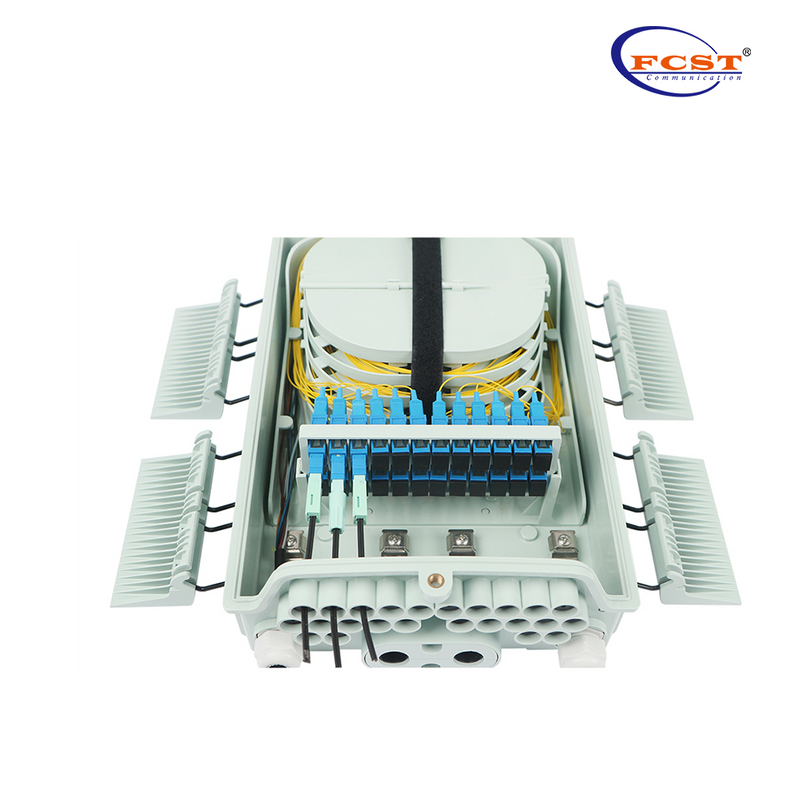

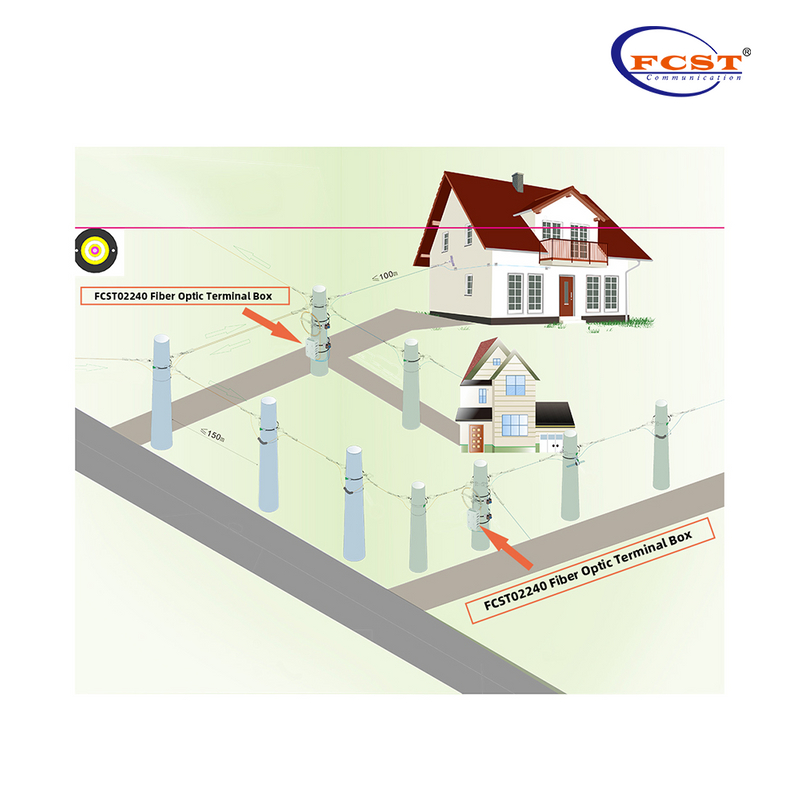

FCST02240 Fiber Access Terminal Closure is able to hold up to 24 subscribers and 96splicing points as closure.The outdoor fiber termination box is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system .it integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.
Product Advantages
l Water-proof design with IP-65 Protection Level.
l Integrated with flap-up splice cassette and adaptor holder.
l Impact test IK10 Pull Force 100N Full rugged design.
l All stainless metal plate and anti-rusting bolts,nuts.
l Fiber bend radius control more than 40mm.
l Suitable for the fusion splicer or mechanical splice.
l 3 pcs of 1*8 Splitter can be installed as an option.
l Mechanical sealing structure and mid-span cable entry.
l 24 adaptors for drop cable patching.
Product Specifications
Construction | Description |
Max Capacity | 96 (Branch 24cores) |
Material | PC+ABS |
Dimension (mm) | 340*220*95 |
Net Weight (g) | 1850 |
PLC Splitter Available | Yes |

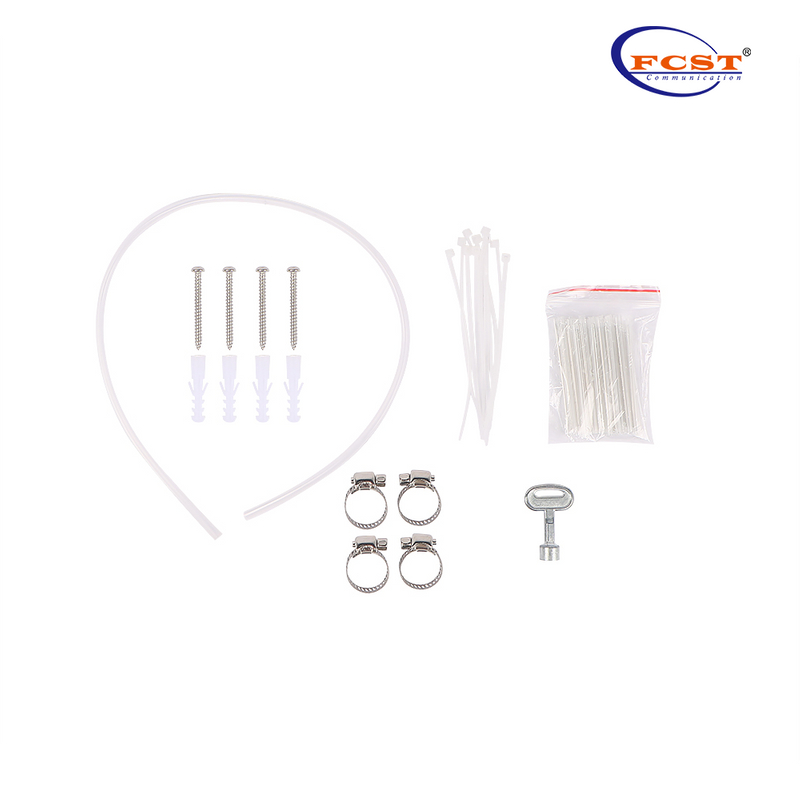

Standard Accessories
Splice cassette and cable management tool , installation nuts and bolts ,protection sleeves hose clamp,cable tube,wreach,cover,holder,rubber seal for cable entrance
Optional Accessories
Pole ring.
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
